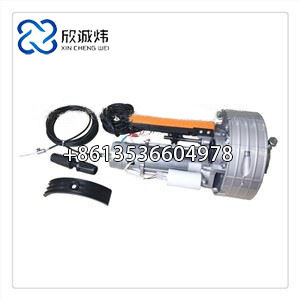

500kg Capacity Electric Central Motor For Automatic Rolling Shutter Doors

Brand Name:	xinchengwei
MOQ:	30 sets
Packaging Details:	Carton packaging
Payment Terms:	L/C,D/A,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Electric Central Motor For Rolling Shutter Doors

Position:

Industrial

Door Material:

Aluminum Alloy

Power Supply:

Single Phase 220V 50HZ / 3 Phase 380V 50HZ

Open Style:

Automatic

Packing Details:

1 Set/box, Packaged In Box

Supply Ability:

100000

Highlight:

Rolling Shutter Doors Central Motor

Automatic Rolling Shutter Doors Motor

500kg Rolling Shutter Door Electric Motor

Product Description

Factory-Direct High-Quality Electric Central Motor for Rolling Shutter Doors

Professional-grade electric central motor designed for automatic rolling shutter doors, offering reliable performance and easy installation for both new and existing systems.

Product Specifications

Product Name	Electric Central Motor for Rolling Shutter Doors
Position	Industrial
Door Material	Aluminum Alloy
Power Supply	Single Phase 220V 50HZ / 3 Phase 380V 50HZ
Open Style	Automatic
Item Location	China
Packing Details	1 set/box, packaged in box

Motor Capabilities

Wide torque range: 130NM, 140NM, 150NM, 160NM
Compatible with spring boxes outer diameter: 200mm / 220mm
Tube rolling diameter: 60mm / 76mm
Lifting capacity: 140kg to 160kg
Easy manual override in case of power failure

Key Features

500kg capacity common door roller motor
Equipped with anti-break chain device for enhanced safety
Gear transmission system - safe, wear-resistant, and low noise
Operates on 220V AC power supply
Widely used in shopping centers, hotels, warehouses, garages, factories, and other rolling shutter door applications

European Type Design: Smooth and noiseless operation with easy installation on both new and existing shutters. Popular European design ensures reliability and performance.
